Duplicator remote control

HERMES MF

Discover the characteristics of the most flexible duplicator remote control on the market

Telecomando duplicatore universale HERMES.MF

FEATURES

Remote control duplicator UNIVERSAL

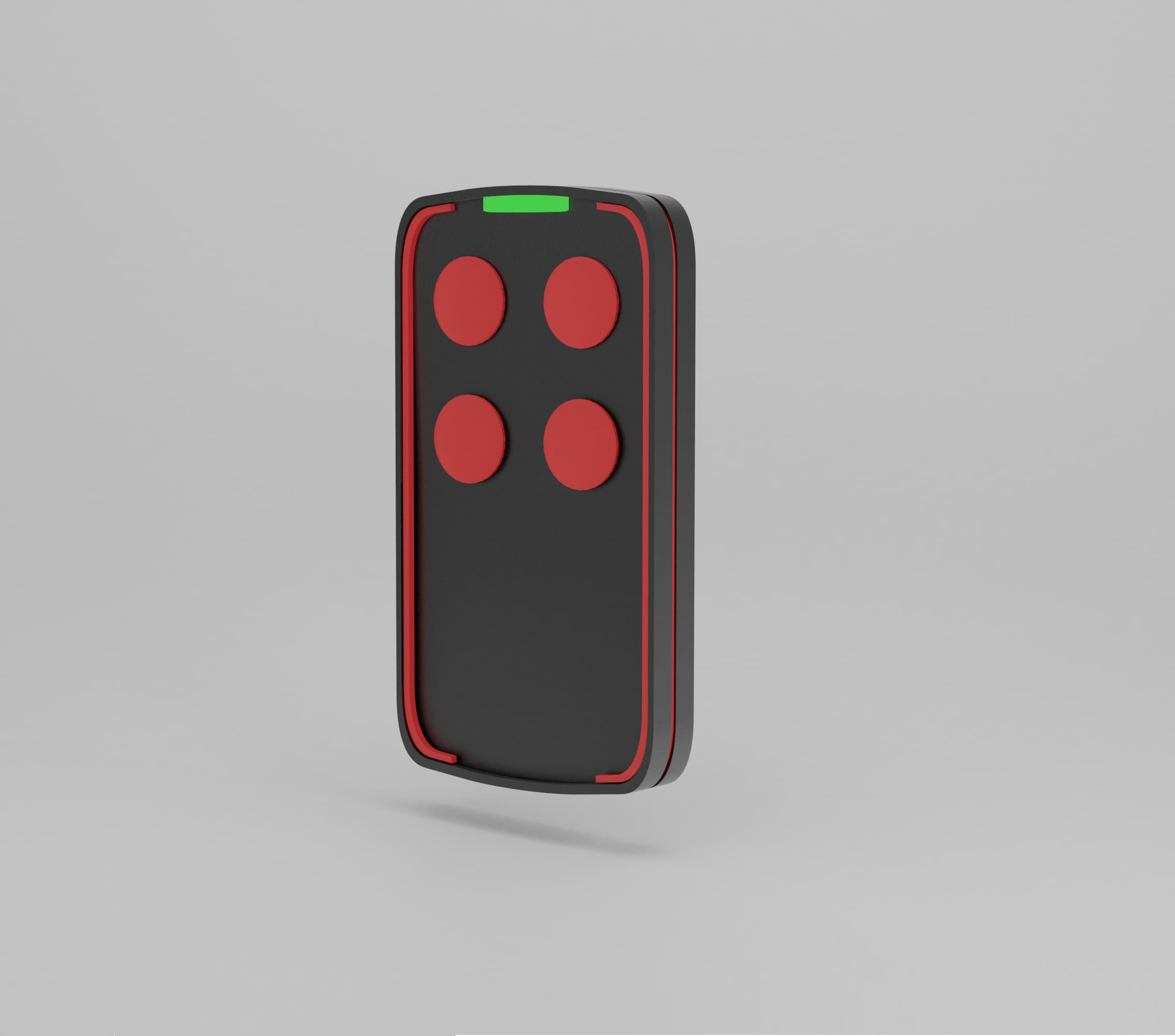

The HERMES.MF remote control duplicator is certainly one of the most flexible remote controls on the market. Below are the main features that make it the number 1.

Multi-frequency
The remote control can memorize a spectrum of frequencies ranging from 290 to 900 MHz.
Unify your automations
HERMES.MF allows you to unify all installations of different brands and frequencies at the same time.
Rolling Code
It's capable of duplicating over 200 Rolling Code remote controls of different brands and frequencies.
Simple Programming
It's just hold down the first button, press for 4 times the second, and wait until the LED becomes green.
SHC Technology
Thanks to the Secret Hidden Code it is able to copy even i remote controls with advanced Rolling Code and auto-insert into receiving.
Made in Italy
It is a totally Made in Italy product

360° View

Programming Modes

The universal remote control HERMES.MF has various programming modes to adapt to any system.

Programming on Receiver

Direct

The "Direct" programming is the simplest and is applied in all Fixed Code remotes.

In some automations, it may be necessary to press the button in front of the receiver 4/5 times.

Auto-learning

The "Auto-learning" programming allows the HERMES.MF to automatically pair with many Rolling Code systems.

Once the procedure is completed, the first operation may take up to a few minutes.

Act in Receiver

The programming that requires adding the receiver allows the HERMES.MF to automatically pair with many Rolling Code systems.

Once the procedure is completed, the remote control will be compatible with the automation, but it will need to be manually added to the receiver.

Programming on Remote Control

FIXED CODES

1

Programming Mode
Press and hold button 1. Meanwhile, press button 2 four times.

2

Release the buttons
Release both buttons of the HERMES.MF.

3

Flashing red LED
At this point, the light of the HERMES.MF will become FLASHING RED with a blinking interval of about 2 seconds.

4

Position the remote to duplicate
Place the remote to duplicate 1 - 3 cm in front of the HERMES.MF.

5

Press the button to duplicate
Press and hold the button on the remote to duplicate.

6

RED LED
The LED will turn STEADY RED and then start flashing.

7

Press the button to duplicate again
Press and hold again the button on the remote to duplicate.

8

Green LED
At this point, the LED will turn GREEN and flash more rapidly. This confirms successful duplication.

9

Save to a button
Finally, press the button on the HERMES.MF to save the duplicated remote.

10

Final Verification
Finally, verify that the HERMES.MF button has been saved by pressing it a couple of times and checking if the LED is GREEN.

SIMPLE ROLLING CODES

1

Programming Mode
Press and hold button 1. Meanwhile, press button 2 four times.

2

Release the buttons
Release both buttons of the HERMES.MF.

3

Flashing red LED
At this point, the light of the HERMES.MF will turn FLASHING RED with a blinking interval of about 2 seconds.

4

Position the remote to duplicate
Place the remote to duplicate 1 - 3 cm in front of the HERMES.MF.

5

Press the button to duplicate
Press and hold the button on the remote to duplicate.

6

RED LED
The LED will turn STEADY RED and then start flashing.

7

Press the button to duplicate again
Press and hold again the button on the remote to duplicate.

8

Green LED
At this point, the LED will turn GREEN and flash faster. This confirms successful duplication.

9

Save to a button
Finally, press the button on the HERMES.MF to save the duplicated remote.

10

Final Verification
Finally, verify that the HERMES.MF button has been saved by pressing it a couple of times and checking if the LED is GREEN.

COMPLEX ROLLING CODES

1

Programming Mode
Press and hold button 1. Meanwhile, press button 2 four times.

2

Release the buttons
Release both buttons of the HERMES.MF.

3

Flashing red LED
At this point, the light of the HERMES.MF will turn FLASHING RED with a blinking interval of about 2 seconds.

4

Position the remote to duplicate
Place the remote to duplicate 1 - 3 cm in front of the HERMES.MF.

5

Press the button to duplicate
Press and hold the button on the remote to duplicate.

6

RED LED
The LED will turn STEADY RED and then start flashing.

7

Source Code
Press buttons 1 and 2 on the remote to duplicate until it starts flashing.

8

Press the button to duplicate again
Press and hold again.

9

Green LED
At this point, the LED will turn GREEN and flash faster. This confirms successful duplication.

10

Save to a button
Finally, press the button on the HERMES.MF to save the duplicated remote.

11

Final Verification
Finally, verify that the HERMES.MF button has been saved by pressing it a couple of times and checking if the LED is GREEN.

The HERMES.MF product boasts unparalleled reliability. Returns are less than 1 in 10,000 pieces.
